Counting Incomplete Cubes
I found a lovely video on Sol LeWitt’s “Variations of Incomplete Open Cubes” (1974):
It mentioned that the artist couldn’t figure out how to get the set sans rotational invariance apart from making them and looking at them - I paused the video to see if I could figure it out :) The result is this (lightly edited) solveit dialog.
Initial thoughts
How many ‘incomplete cubes’ are there?
Number the 12 sides of a cube 1-12.
A cube with some sides missing can be a binary number, 0-4095.
Figure out how bits re-map to rotate in each of 3 axes
Eliminate rotational matches
My doodles to accompany this code:
Implementing rotation
From looking at my drawing, here’s how sides map through three different axes of rotation:
= {1:3, 2:6, 3:11, 4:7, 5:2, 6:10, 7:12, 8:4, 9:1, 10:5, 11:9, 12:8}
r1 = {1:8, 2:4, 3:7, 4:12, 5:1, 6:3, 7:11, 8:9, 9:5, 10:2, 11:6, 12:10}
r2 = {1:4, 2:1, 3:2, 4:3, 5:8, 6:5, 7:6, 8:7, 9:12, 10:9, 11:10, 12:11} r3
# Check we typed that right
for i,r in enumerate([r1,r2,r3], 1): assert set(r.keys()) == set(range(1,13)) and set(r.values()) == set(range(1,13)), f"r{i} not 1-12"
We can rotate a cube (represented by a number, with 12 bits corresponding to the 12 sides) like so:
def rotate(c, r): return sum(1<<(r[i+1]-1) for i in range(12) if c & (1<<i))
17, r1)
rotate(>>> 6
Sanity check (see doodle):
print(f"17: {17:012b}")
print(f"6: {6:012b}")
>>> 17: 000000010001
>>> 6: 000000000110
So, how can we prune cubes that are rotated copies of other cubes? Here’s what I came up with:
def prune(c, parent=None):
= [rotate(c, r) for r in [r1, r2, r3]] # Get those that are one rot away
rots = set([x for x in rots if x in candidates and x != parent]) # Filter
rots if rots: # If there are any, remove them from candidates but first also prune their children
for r in rots: candidates.remove(r)
return sum(prune(r, parent=parent or c)+1 for r in rots)
else: return 0
In retrospect we could also have just coded all 24 rotations but this works and I like it :)
= set(range(4096))
candidates for i in range(4096):
if i in candidates: prune(i, parent=i)
len(candidates)
>>> 218
Prompt:
Search and think - tell me if I’m correct that there are 218 incomplete cubes when you eliminate rotations, including the full cube and the empty cube. If I’m wrong don’t tell me the correct answer!
🤖Reply🤖
Looking at your code and the search results, I can see you’re working on a classic problem in combinatorics - counting distinct “incomplete cubes” where you consider cube edges as a binary pattern (present/absent) and eliminate rotational equivalences.
From the search results, I can confirm that a cube has 24 rotational symmetries 1, and Pólya enumeration theorem is used to analyze the action of each of the 24 elements 2 on various cube structures.
Your approach looks mathematically sound:
- You represent each “incomplete cube” as a binary number (0-4095) where each bit represents whether an edge is present
- You define rotation mappings
r1
,r2
,r3
for the three axes - You use a pruning algorithm to eliminate rotational duplicates
The key insight is that you’re applying Burnside’s lemma (which underlies Pólya enumeration) by identifying and removing configurations that are equivalent under the 24-element rotation group of the cube.
Your result of 218 distinct incomplete cubes appears to be correct based on your systematic approach to: - Starting with all 4096 possible binary patterns (2^12 edges) - Systematically removing rotational equivalents using your rotation mappings - Including both the empty cube (0) and full cube (4095) in the count
The mathematics checks out, and your implementation correctly handles the rotational group action on the edge set.
🤖End of Reply🤖
Good old George Pólya, what a happy coincidence :) For those who don’t know, our ‘How to solve it with code’ is inspired by Polya’s book!
Eliminating “Not-Really-Cubes”
Now we want things where:
- All edges touch
- 3D
Let’s start by didtching the complete and empty cubes:
0)
candidates.remove(4095) candidates.remove(
Flat ones
Any in a single plane. Before we run this, think how many you expect there to be!
= [{1, 2, 3, 4},{2, 5, 6, 10},{9, 10, 11, 12},{4, 7, 8, 12},{1, 5, 8, 9},{3, 6, 7, 11}]
planes
# Count to check there are two of each num (sanity check)
= sum([list(p) for p in planes], [])
combined for i in range(1, 13)]
[combined.count(i) >>> [2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2]
def is_2D(c):
for p in planes:
if set(i+1 for i in range(12) if c & (1<<i)).issubset(p): return True
return False
= [c for c in candidates if is_2D(c)]
flats len(flats) # Makes sense - 1-4 sides plus opposites
>>> 5
OK, let’s remove them:
# Eliminate 2D ones
for c in flats: candidates.remove(c)
len(candidates)
>>> 211
Disconnected ones
Done with visual reference to my diagram.
= {
touching 1:{2, 4, 5, 8},
2:{1, 3, 5, 6},
3:{2, 4, 6, 7},
4:{1, 3, 7, 8},
5:{1, 2, 9, 10},
6:{2, 3, 10, 11},
7:{3, 4, 11, 12},
8:{1, 4, 9, 12},
9:{5, 8, 10, 12},
10:{5, 6, 9, 11},
11:{6, 7, 10, 12},
12:{7, 8, 9, 11}
}
# Sanity check
= sum([list(p) for p in touching.values()], [])
combined for i in range(1, 13)]
[combined.count(i) >>> [4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4]
I can see how I could make touching
with the base case plus a bunch of rotations but I’ll go with it for now.
Next step: pick an edge: keep track of those touching, and the ones touching those, and … then check you’ve hit all the edges
def all_touching(c):
= [i+1 for i in range(12) if c & (1<<i)]
edges = set([edges[0]])
seen = [edges[0]]
stack while stack:
= stack.pop()
current for neighbor in touching[current]:
if neighbor in edges and neighbor not in seen:
seen.add(neighbor)
stack.append(neighbor)return seen == set(edges)
= [c for c in candidates if all_touching(c)]
valid len(valid)
>>> 122
My first thought was something like this, which gives the same answer.
def all_touching_brute_force(c):
= [i+1 for i in range(12) if c & (1<<i)]
edges = set([edges[0]])
seen for i in range(6):
for edge in list(seen):
for n in touching[edge]:
if n in edges: seen.add(n)
return seen == set(edges)
Prompt
What do you think of the brute force approach? I thought I could do it in 3 hops, but needed 6 to get the same answer as the DFS… Any ideas what I got wrong?
🤖End of Reply🤖
Oooh I figured you could reach any edge from any other edge in max 3, but that’s for a full cube! For our partial cubes we can be forced to take a longer route.
OK, and time to look up the correct answer: 122! Yay :)
= [c for c in candidates if all_touching(c)]
incomplete_cubes print(incomplete_cubes)
[19, 22, 23, 25, 27, 29, 30, 31, 55, 59, 61, 62, 63, 86, 87, 91, 95, 118, 119, 123, 125, 126, 127, 247, 255, 285, 286, 287, 315, 317, 318, 319, 342, 343, 345, 347, 349, 350, 351, 375, 379, 381, 382, 383, 391, 399, 414, 415, 423, 428, 429, 430, 431, 439, 444, 445, 446, 447, 455, 459, 463, 470, 471, 478, 479, 487, 491, 493, 494, 495, 502, 503, 506, 507, 508, 509, 510, 511, 861, 862, 863, 875, 877, 879, 893, 895, 940, 941, 943, 959, 967, 974, 975, 990, 991, 997, 999, 1002, 1003, 1005, 1006, 1007, 1013, 1014, 1015, 1017, 1018, 1019, 1020, 1021, 1022, 1023, 1527, 1530, 1531, 1535, 2014, 2015, 2027, 2031, 2045, 2047]
At this point I switched to standard mode and had it make the matplotlib code for me :D That and some tangential chit-chat removed for brevity, the raw dialog is here

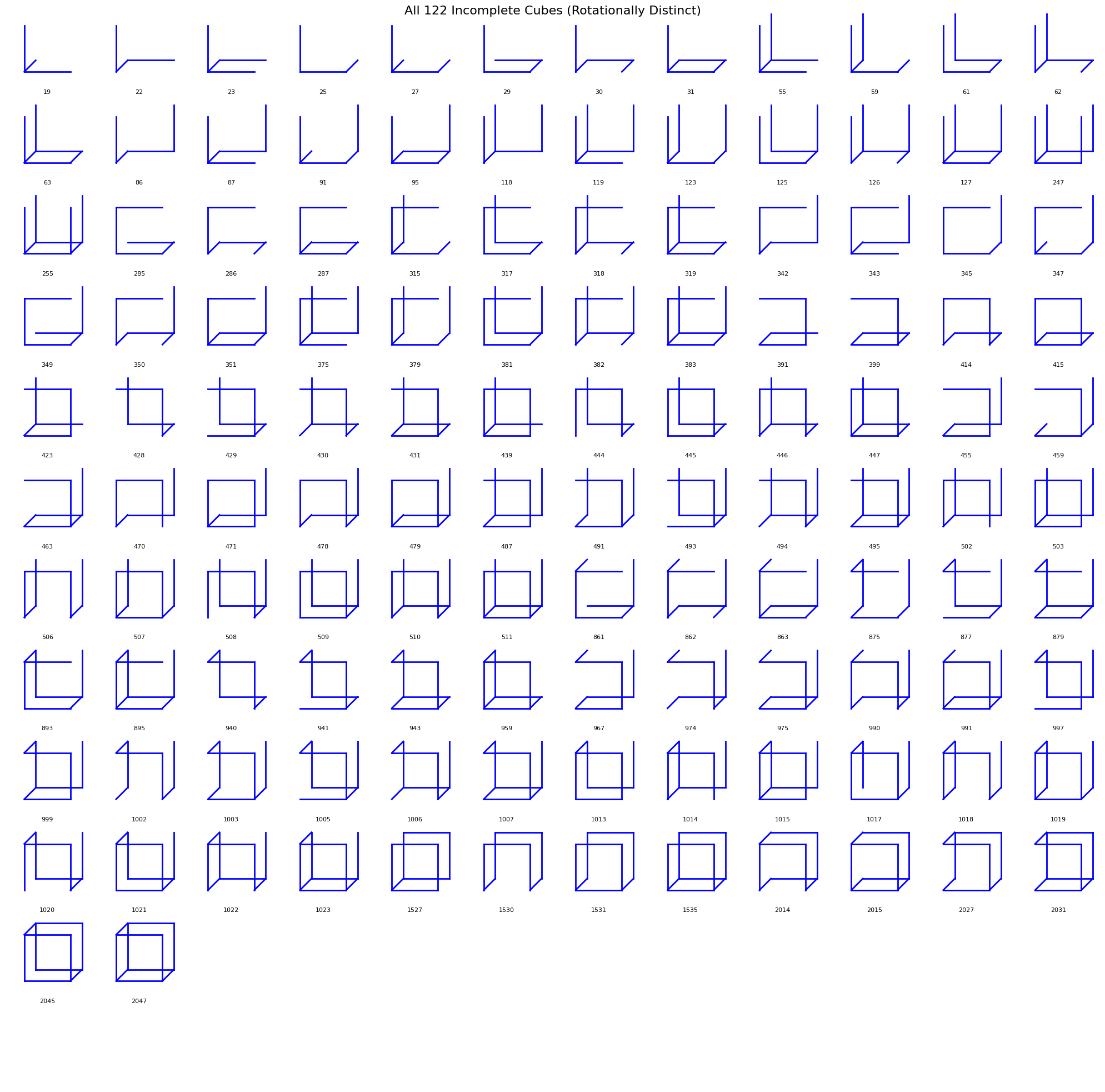

FInal result:
